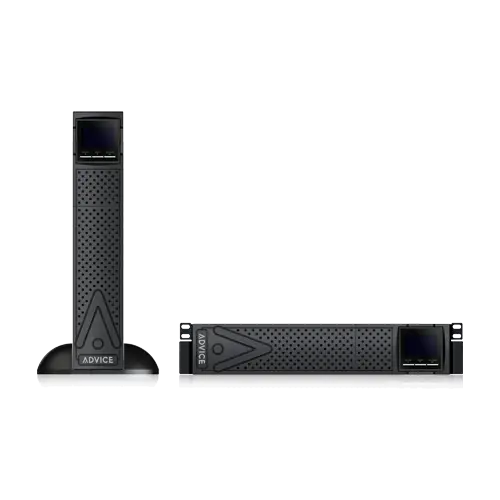

אל פסק חד פאזי ADVICE ON 2000 RM UPS

PHASE Single phase with ground
CAPACITY 1000 VA / 900 W 2000 VA / 1800 W 3000 VA / 2700 W
INPUT
Nominal Voltage 110/115/120/127VAC or 208/220/230/240VAC
Input Voltage Range 60-145 VAC or 120-300 VAC at 50% load
90-145 VAC or 180-300 VAC at 100% load
Frequency Range 40Hz ~ 70 Hz
Power Factor ≧ 0.99 @ Nominal Voltage (100% load)
OUTPUT
Output Voltage 110/115/120/127VAC or 208/220/230/240VAC
Voltage Regulation ± 1%
Frequency Range (Synchronized
Range) 47~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Batt. Mode) 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
Current Crest Ratio 3:1
Harmonic Distortion ≦ 3 % THD (Linear Load) ≦ 6 % THD (Non-linear Load)
Transfer
Time
AC Mode to Battery
Mode Zero
Inverter to Bypass 4 ms (Typical)
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
AC Mode 88% 89% 90%
Battery Mode 83% 87% 88%
BATTERY
Standard
Model
Battery Type 12 V / 9 AH
Typical Recharge Time 4 hours recover to 90% capacity
Charging Current (max.) 1.0 A
Charging Voltage 27.4VDC ± 1% 54.7 VDC ±1% 82.1 VDC ±1%
Long-run
Model*
Battery Type Depending on the capacity of external batteries
Charging Current (max.) 1A/2A/4A/6A (Adjustable)
Charging Voltage 27.4VDC ± 1% 41.0VDC ± 1% 54.7 VDC
±1%
82.1 VDC
±1%
109.4VDC
±1% 82.1 VDC ±1% 109.4VDC ±1%
INDICATORS
LCD Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Bypass Sounding every 10 seconds
Fault Continously sounding
PHYSICAL
Standard
Model
Dimension,
D x W x H (mm) 310 x 438 x 88 410 x 438 x 88 630 x 438 x 88
Net Weight (kgs) 12 19 29.3
Long-run
Model*
Dimension,
D x W x H (mm) 310 x 438 x 88 410 x 438 x 88
Net Weight (kgs) 9 12 14.2
ENVIRONMENT
Humidity 20-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 50dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB Supports Windows 2000/2003/XP/Vista/2008/7/8/10
Linux, Unix, and MAC according software list
Optional SNMP Power management from SNMP manager and web browser
Standards CE, EN62040-1, EN62040-2
