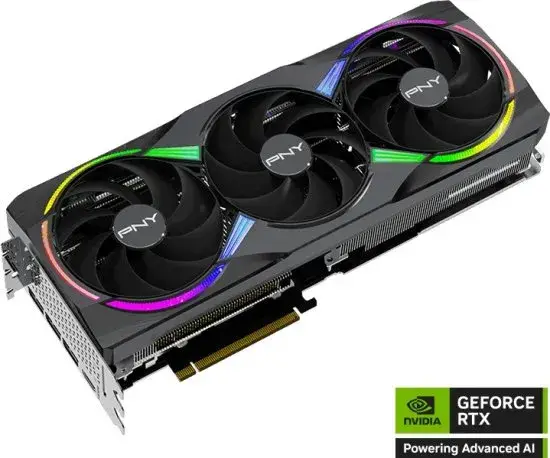

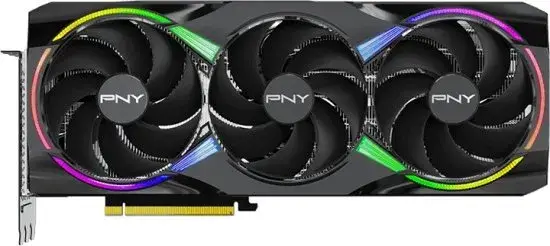

כרטיס מסך PNY GeForce RTX 5070 Ti 16GB Triple Fan Plus Models

Architecture Blackwell

CUDA® Cores 8,960

Clock Speed 2295GHz

Boost Speed 2640GHz

Memory Speed 28

Memory Size 16GB GDDR7

Memory Interface 256-bit

Memory Bandwidth Up to 896GB/sec

TDP 300W

NVLink Not Supported

Outputs

3xDisplayPort 2.1b

1xHDMI® 2.1b

Multi-Screen 4

Resolution 4K at 480Hz or 8K at 165Hz with DSC (Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz With HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz)

Power Input 16-pin (One 16-pin to Three 8-pin)

Bus Type PCI-Express 5.0 x16

Card Dimensions 12.93" x 5.42" x 2.35"; 3 Slot

Box Dimensions 15.94" x 7.83" x 4.06"

System Requirements

PCI Express-compliant motherboard with one 3-width x16 graphics slot

Three 8-pin supplementary power connectors

750W or greater system power supply (Minimum is based on a PC configured with a Ryzen 9 5900X processor. Power requirements can be different depending on system configuration.)

Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit

Internet connection (1Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.)
