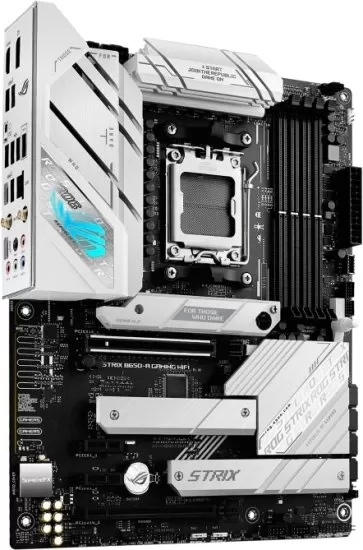

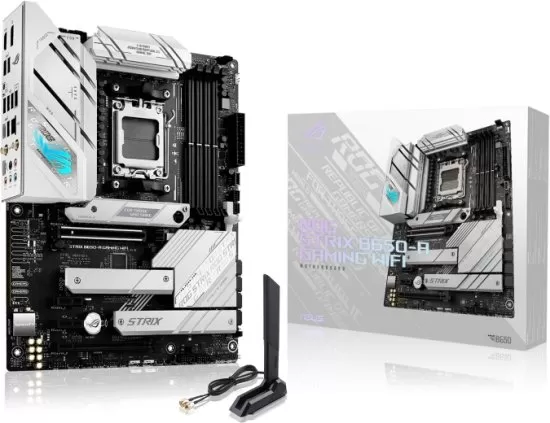

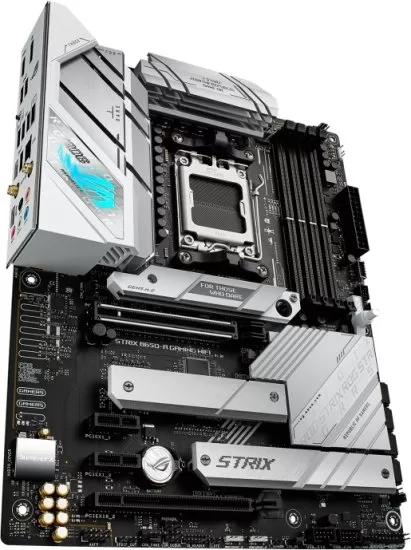

לוח אם Asus ROG STRIX B650-A GAMING WIFI AMD AM5 B650 DDR5
מק"ט - 540010155
אזל במלאי
קנייה מאובטחת
משלוח מהיר
עד 12 תשלומים
מפרט טכני:
- מעבד
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
- ערכת שבבים
AMD B650
- זיכרון
4x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
- גרפיקה
1x DisplayPort*
1x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
1x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
- חריצי הרחבה
AMD Ryzen™ 7000 Series Desktop Processors
1x PCIe 4.0 x16 slot
AMD B650 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)*
2x PCIe 4.0/3.0 x1 slots
* PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.
1x PCIe 4.0 x16 slot
AMD B650 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)*
2x PCIe 4.0/3.0 x1 slots
* PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.
- אחסון
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
4x SATA 6Gb/s port
* AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
4x SATA 6Gb/s port
* AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.
- רשת
1x Intel® 2.5Gb Ethernet
ASUS LANGuard
ASUS LANGuard
- תקשורת אלחוטית
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
* Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
* Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
- USB
Rear USB (Total 9 ports)
1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
4x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1x USB 3.2 Gen 2 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers supports additional 4 USB 2.0 ports
1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
4x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1x USB 3.2 Gen 2 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers supports additional 4 USB 2.0 ports
- שמע
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
- חיבורים ויציאות
1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
4x USB 2.0 ports (4 x Type-A)
1x DisplayPort
1x HDMI® port
1x Wi-Fi Module
1x Intel® 2.5Gb Ethernet port
5x Audio jacks
1x BIOS FlashBack™ button
4x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
4x USB 2.0 ports (4 x Type-A)
1x DisplayPort
1x HDMI® port
1x Wi-Fi Module
1x Intel® 2.5Gb Ethernet port
5x Audio jacks
1x BIOS FlashBack™ button
- חיבורים פנימיים
Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector
Storage related
3x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB 3.2 Gen 2 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3x Addressable Gen 2 headers
1x AURA RGB header
1x Clear CMOS header
1x CPU Over Voltage jumper
1x Front Panel Audio header (AAFP)
1x S/PDIF Out header
1x 20-3 pin System Panel header with Chassis intrude function
1x Thermal Sensor header
1x Thunderbolt™header
1x COM_DEBUGheader
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector
Storage related
3x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB 3.2 Gen 2 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3x Addressable Gen 2 headers
1x AURA RGB header
1x Clear CMOS header
1x CPU Over Voltage jumper
1x Front Panel Audio header (AAFP)
1x S/PDIF Out header
1x 20-3 pin System Panel header with Chassis intrude function
1x Thermal Sensor header
1x Thunderbolt™header
1x COM_DEBUGheader
- תכונות מיוחדות
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-LED
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-LED
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
- תכונות תוכנה
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
- BIOS
256 Mb Flash ROM, UEFI AMI BIOS
- ניהוליות
WOL by PME, PXE
- אביזרים
Cables
2x SATA 6Gb/s cables
Additional Cooling Kit
1x Thermal pad for M.2
Miscellaneous
1x ASUS Wi-Fi moving antennas
1x Cable ties pack
1x M.2 Q-Latch package
1x ROG key chain
1x ROG Strix stickers
1x ROG Strix thank you card
2x M.2 Rubber Packages
Documentation
1x User guide
2x SATA 6Gb/s cables
Additional Cooling Kit
1x Thermal pad for M.2
Miscellaneous
1x ASUS Wi-Fi moving antennas
1x Cable ties pack
1x M.2 Q-Latch package
1x ROG key chain
1x ROG Strix stickers
1x ROG Strix thank you card
2x M.2 Rubber Packages
Documentation
1x User guide
- מערכות הפעלה תומכות
Windows® 11 64-bit
תצורה
- ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
| אחריות: | 36 חודשי אחריות ע''י היבואן הרשמי |
| אספקה: | 7 ימי עסקים |
| סוג זכרון: | DDR5 |
| תושבת מעבד: | AMD AM5 |
| גודל לוח: | ATX |
